Description

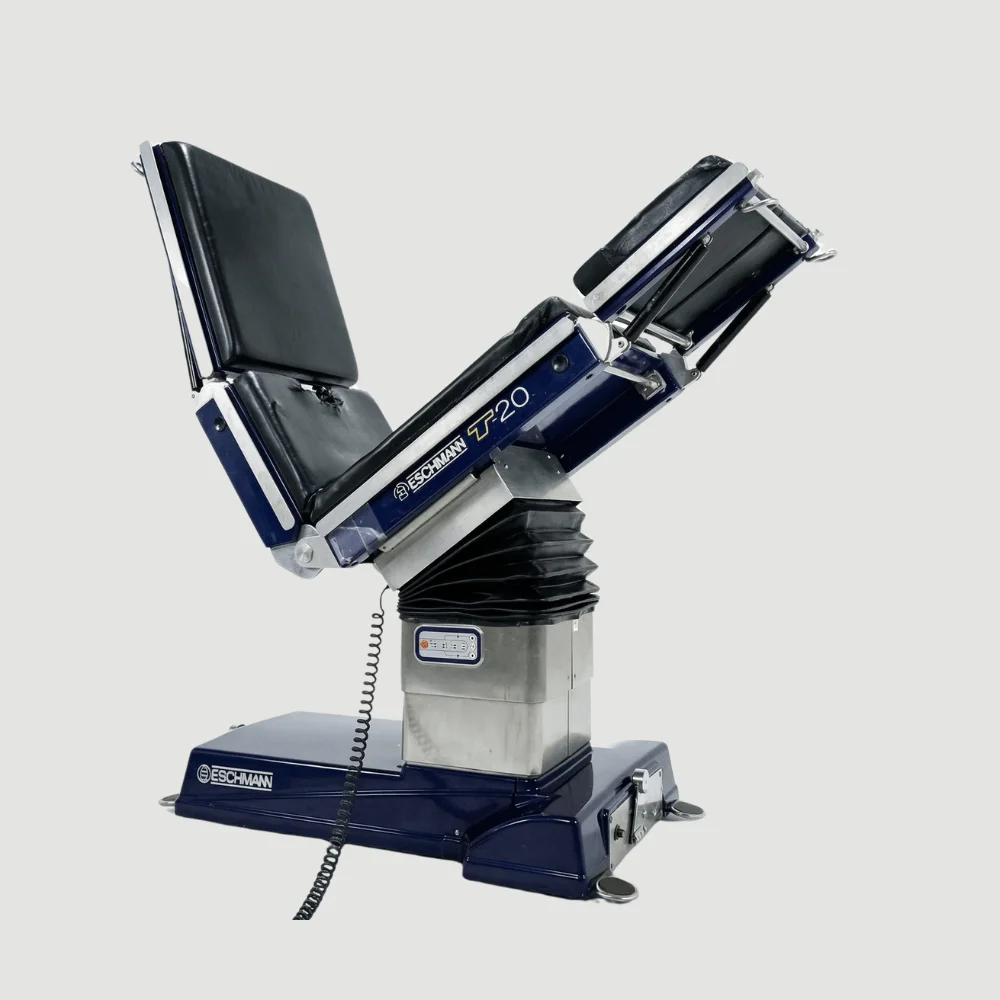

The T20 series is engineered to balance high weight capacity with refined maneuverability. Its modular tabletop and offset column design are specifically optimized for C-arm integration, ensuring unobstructed access for intraoperative imaging across diverse surgical disciplines.
-
Exceptional Weight Capacity: Capable of supporting a maximum patient weight of up to 300 kg (660 lbs), with bariatric-ready versions (T20+) supporting up to 450 kg (990 lbs).
-
Powered 250mm Traversing Top: The motorized sliding tabletop provides superior longitudinal travel, allowing for full-body C-arm coverage without repositioning the patient.
-
Full-Length X-Ray Tunnel: Features an integrated X-ray cassette tunnel that spans the entire length of the radiolucent tabletop, accessible from either end.
-
Multi-Directional Positioning: Controlled via a corded handset, the table offers motorized adjustments for:
-
Height (670mm to 1070mm range)
-
Trendelenburg and Reverse Trendelenburg ($35^{\circ}$ / $35^{\circ}$)
-
Lateral Tilt ($15^{\circ}$)
-
Flexion and Extension (including a $90^{\circ}$ chair position)
-
-
Modular Section Design: Head and leg sections are lightweight, interchangeable, and feature an auto-locking mechanism for rapid configuration between general surgery, lithotomy, and prone positions.
-
Advanced Infection Control: Utilizes a “Velcro-free” mattress attachment system with mushroom-cap fixings and seamless, anti-static mattresses to facilitate thorough cleaning and disinfection.
-
Integrated Safety Systems: Includes a built-in override control panel on the column to maintain full table functionality in the event of handset damage, alongside battery status indicators on both the handset and base.
-
Base Variations:
-
‘a’ Base: A lower, traditional profile with a smaller footprint for maximum surgical access.
-
‘m’ Base: Features large 125mm castors and a single-pedal braking system for enhanced mobility and trolley-like transport capability.
A modular, electric ICU-grade operating table featuring a 250mm traversing top and 300kg weight capacity. Equipped with a radiolucent top, integrated X-ray tunnel, and motorized $90^{\circ}$ chair positioning, it offers exceptional C-arm access and “Velcro-free” infection control for general and specialist surgery.
-
